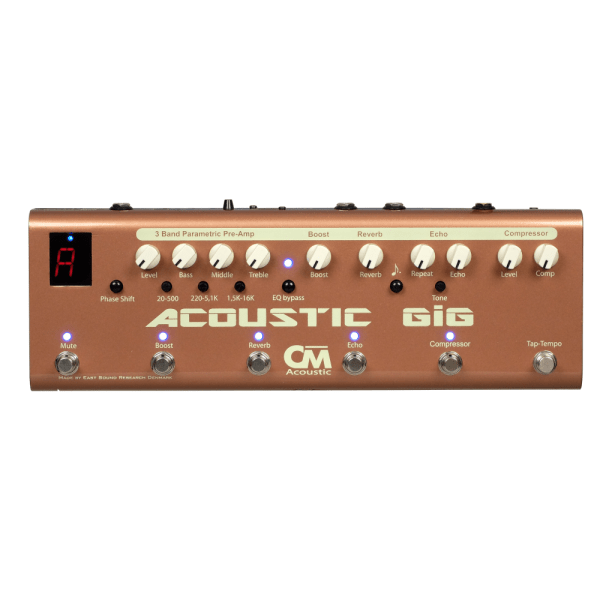

Carl Martin Acoustic GiG Multi-Effects Guitar Pedal

Key Features

• Acoustic preamp with EQ and compressor
• Built-in boost and mute functions
• 3-band EQ with sweepable mids
• Balanced DI output for stage or studio
• Rugged housing with easy layout

Specifications

• Input: 1M Ohm
• Output 1/4” unbalanced: 600 Ohm
• Output DI Balanced: 200 Ohm
• S/N Ratio: 60dB
• Compression range: from 1:1 to 1:00
• Gain range compressor: +-20dB
• Echo time max: 1000 m.sec
• Tone Echo: Cut filter (low pass)
• Gain Boost max: +12dB
• Bass: +-15dB 20-500Hz, 6dB Oct.
• Middle: +-15dB 220Hz-5,1kHz, 6dB Oct.
• Treble: +15dB 1,5-16kHz, 6dB Oct.
• Send impedance loop: 200 Ohm
• Return impedance: 1M Ohm
• Power consumption: max. 500mA.
• Power supply: 9 V DC (regulated), 600 mA minimum, 2.1 mm female plug, center negative (-)
